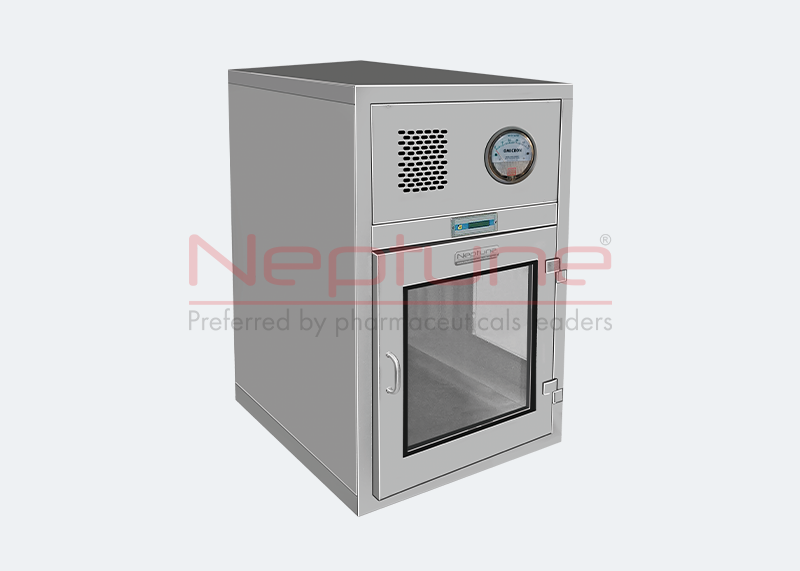

DYNAMIC PASS BOX
Neptune Steel Furniture is known for the manufacturer and supplier of the best quality Dynamic Pass Box with high accuracy.
Dynamic pass box is used to transfer material from an uncontrolled environment to controlled environment. It is works like an airlock. It may be cascade, Sink and Bubble type. Dynamic pass box has a system which is known as interlock guard located on both sides. An interlock monitor framework controls the in let and the out let of PASS BOX not be opened simultaneously, so as to forestall the cross pollution.
From the time being, we are helping our clients with the proper installation process of the Dynamic pass box in their industrial setups.
Dynamic pass box is used to transfer material from an uncontrolled environment to controlled environment. It is works like an airlock. It may be cascade, Sink and Bubble type. Dynamic pass box has a system which is known as interlock guard located on both sides. An interlock monitor framework controls the in let and the out let of PASS BOX not be opened simultaneously, so as to forestall the cross pollution.
From the time being, we are helping our clients with the proper installation process of the Dynamic pass box in their industrial setups.
SPECIFICATION OF DYNAMIC PASS BOX
| Cleanliness | Dust counts exceeds Class 100 requirements as per ISO 14644 & IEST-RP-CC001.3 |
| Velocity at Grill | 90 ± 20 FPM at 150 mm From HEPA Filter Face, (0.45 ± 0.05 m/s) |
| MOC | SS 304 / SS 316 (1 mm / 1.2 mm) SS 304 Door Hinges and Door Handles |
| Pre Filter | 5 Micron, EU5 grade with Efficiency 95% – Washable (For Fresh Air & Recirculation) (Make: AAF) (American Air Filter) |
| HEPA Filter | 0.3 Micron, H14 Grade with Efficiency 99.999%, Supply “AAF” HEPA Filter |
| Controller | Electromagnetic Door Interlocking (Allows to open one door at a time) 1 Year warranty from the date of dispatch for Pass Box Controller set (Magnet, Display, Connection Cables) |
| Motor Blower | Statically & Dynamically Balanced Single/Double Inlet Centrifugal Type Motor Blower (1 Year warranty from the date of dispatch for Motor Blower in case of any damage or fault after a year , New Blower will be charges as Extra. ) |
| Magnehelic Gauge | 0 to 25 MM, To measure differential pressure across HEPA Filter (Make: Omicron / Care / Nextech) |
| Speed Variable | To adjust the speed of Motor Blower and maintain the required velocity |
| Electrical | LED Light :- Diffused Fluorescent Lighting to provide an intensity of 300 LUX UV Light :- 8W-11W (Make: Phillips) (Philips does not provide warranty for UV Lights. Fitting for UV Light has 6 Months Warranty from the date of Supply. Display :- Two Line Digital Display with ON/OFF Buttons with LED Indication |
| Special features | → Double Skin Body Construction, Recirculatory Plenum on Both Sides → Door Open / Close Delay Audio Visual Alarm UV Hour Meter (Inbuilt) → 30 MM Double Skin Doors with View Panel → Double Side 5 mm Toughened Glass |
| Noise Level | Less than 65 DB on scale |
| Power supply | 230V ± 10V, 50 Hz, Single Phase (Also Available in 3 Phase) |
| Documentation | DQ, IQ and OQ Documents along with all Necessary Test Certificates |
| Validation | Validation Charges Extra Air Velocity | Particle Count | Recovery Test Integrity test |Smoke Study |
