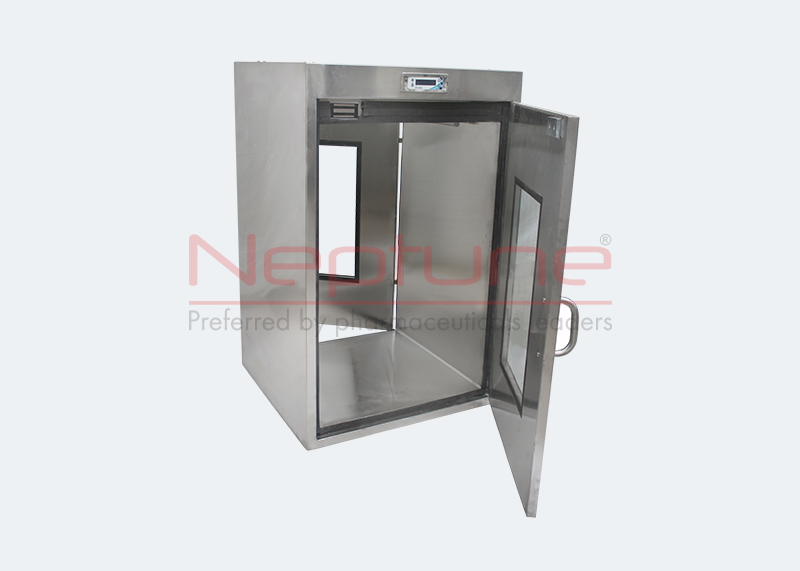

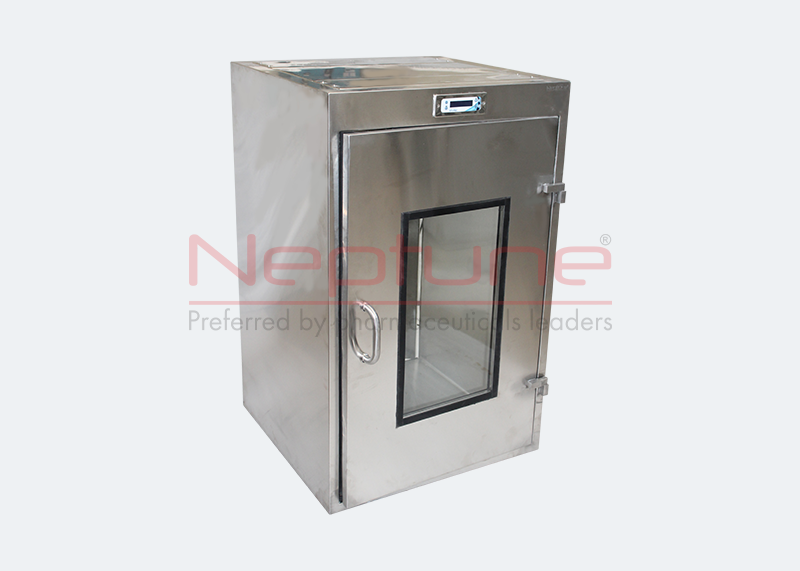

STATIC PASS BOX

At Neptune Steel Furniture, we understand the requirement of every industrial application and their machinery. We manufacturer and supplier of these Static Pass Box in accordance to the standards set by the ISO. Static pass box are basic boxes mounted between two zones and furthermore known as passive pass boxes. It maintains the cleanness while transfer material from one clean room to other clean room.

The body is fabricated with matt polished from high grade stainless steel 304/316 grade material. It will be introduced in assembling zones and channel the approaching air so as to keep the air liberated from dust and different contaminants. Double skinned body with inside full support stiffeners make it durable. All segments are intended for most extreme concoction obstruction and upgraded sturdiness for a long assistance life. The Static Pass Box is very much structured and all around kept up all the capacity are made looking the client needs.

SPECIFICATION OF STATIC PASS BOX

MOC SS 304 / SS 316 (1 mm / 1.2 mm)
SS 304 Door Hinges and Door Handles
Electrical Feather Touch Display Each Side
Fluorescent Illumination LED Light (Make: Syska)
UV Light 8W-11W (Make: Phillips)
Special Features → Process Lock Timer (Inbuilt)
→ Door Open/Close Delay Alarm (Inbuilt)
→ UV Hour Meter (Inbuilt)
→ 30 MM Double Skin Doors with View Panel
→ 5 MM Toughened Glass as View Panel
Power Supply Power Supply 220-240V, 50 Hz, Single Phase
Documentation DQ, IQ and OQ Documents along with all Necessary Test Certificates
Validation Validation Charges Extra
Air Velocity | Particle Count | Recovery Test | Integrity test | Smoke Study
